Lumo Utility Classes

List of Lumo utility classes and descriptions of them.

Lumo Utility Classes are predefined CSS class names and stylesheets — similar to the popular Tailwind CSS library. They can be used to style HTML elements and layouts without having to write CSS.

Each utility class applies a particular style to the element, such as background color, borders, fonts, sizing, or spacing. Classes for applying CSS flexbox and grid layout features are also available.

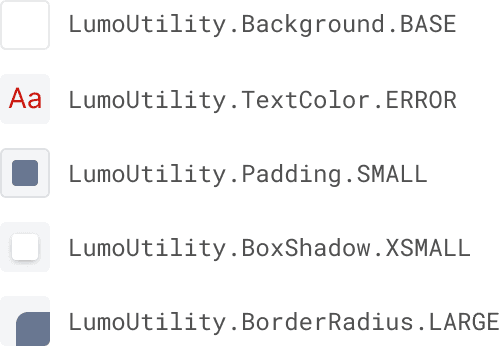

Small example of Lumo Utility Classes
Example of Lumo Utility Classes

Enable Utility Classes

The utility classes are not loaded by default. To use them, make sure that the utility module is included in the lumoImports list in your application theme’s configuration file:

{
  "lumoImports" : [ "typography", "color", "spacing", "badge", "utility" ]
}

Vaadin application projects that are generated with start.vaadin.com already have this configured.

Use Utility Classes

The LumoUtility Java class in Flow contains String constants for all utility classes. They’re divided into nested category classes, such as LumoUtility.FontSize. These are applied the same way as CSS class name literals, using the addClassNames or ClassList APIs.

Span errorMsg = new Span("Error");
errorMsg.addClassNames(
  LumoUtility.TextColor.ERROR,
  LumoUtility.Padding.SMALL,
  LumoUtility.Background.BASE,
  LumoUtility.BoxShadow.XSMALL,
  LumoUtility.BorderRadius.LARGE
);
Effects of the above application of utility classes
Effects of Above Application of Utility Classes

The Lumo utility classes are designed primarily to be used with native HTML elements, Vaadin layout components, and custom UI structures. Although some of them do work as expected on some Vaadin components, this is not their intended use. They especially cannot be used to style the inner parts of components.

Note
Doesn’t Work in Embedded Overlays

Due to the way overlays (e.g., Dialog or the Combo Box drop-down) are rendered in embedded Flow UIs, the Utility Classes don’t work in them. See https://github.com/vaadin/flow/issues/16083 for details.

List of Utility Classes

Open in a
new tab
// Import all Lumo CSS custom properties into the global style scope
// tag::color[]
import '@vaadin/vaadin-lumo-styles/color.js';
// end::color[]
// tag::typography[]
import '@vaadin/vaadin-lumo-styles/typography.js';
// end::typography[]
// tag::size[]
import '@vaadin/vaadin-lumo-styles/sizing.js';
// end::size[]
// tag::space[]
import '@vaadin/vaadin-lumo-styles/spacing.js';
// end::space[]
// tag::style[]
import '@vaadin/vaadin-lumo-styles/style.js';
// end::style[]
// tag::utility-classes[]
import '@vaadin/vaadin-lumo-styles/utility.js';
// end::utility-classes[]
// prettier-ignore

The following is a list of all of the utility classes:

Important
 LumoUtility Java API available from version 23.1

Backgrounds

Classes for applying a background color.
Java class: LumoUtility.Background

Base

Preview CSS Class Name / Java Constant

Base

bg-base / BASE

Transparent

Preview CSS Class Name / Java Constant

Transparent

bg-transparent / TRANSPARENT

Contrast

Preview CSS Class Name / Java Constant

bg-contrast-5 / CONTRAST_5

bg-contrast-10 / CONTRAST_10

bg-contrast-20 / CONTRAST_20

bg-contrast-30 / CONTRAST_30

bg-contrast-40 / CONTRAST_40

bg-contrast-50 / CONTRAST_50

bg-contrast-60 / CONTRAST_60

bg-contrast-70 / CONTRAST_70

bg-contrast-80 / CONTRAST_80

bg-contrast-90 / CONTRAST_90

bg-contrast / CONTRAST

Primary

Preview CSS Class Name / Java Constant

bg-primary-10 / PRIMARY_10

bg-primary-50 / PRIMARY_50

bg-primary / PRIMARY

Error

Preview CSS Class Name / Java Constant

bg-error-10 / ERROR_10

bg-error-50 / ERROR_50

bg-error / ERROR

Warning

Preview CSS Class Name / Java Constant

bg-warning-10 / WARNING_10

bg-warning / WARNING

Success

Preview CSS Class Name / Java Constant

bg-success-10 / SUCCESS_10

bg-success-50 / SUCCESS_50

bg-success / SUCCESS

Borders

Border related classes.
Java class: LumoUtility.Border

Preview CSS Class Name / Java Constant

border-0 / NONE

border / ALL

border-b / BOTTOM

border-l / LEFT

border-r / RIGHT

border-t / TOP

Border Color

Classes for setting the border color of an element.
Java class: LumoUtility.BorderColor

Contrast
Preview CSS Class Name / Java Constant

border-contrast-5 / CONTRAST_5

border-contrast-10 / CONTRAST_10

border-contrast-20 / CONTRAST_20

border-contrast-30 / CONTRAST_30

border-contrast-40 / CONTRAST_40

border-contrast-50 / CONTRAST_50

border-contrast-60 / CONTRAST_60

border-contrast-70 / CONTRAST_70

border-contrast-80 / CONTRAST_80

border-contrast-90 / CONTRAST_90

border-contrast / CONTRAST
Primary
Preview CSS Class Name / Java Constant

border-primary-10 / PRIMARY_10

border-primary-50 / PRIMARY_50

border-primary / PRIMARY
Error
Preview CSS Class Name / Java Constant

border-error-10 / ERROR_10

border-error-50 / ERROR_50

border-error / ERROR
Warning
Preview CSS Class Name / Java Constant

border-warning-10 / WARNING_10

border-warning / WARNING

border-warning-strong / WARNING_STRONG
Success
Preview CSS Class Name / Java Constant

border-success-10 / SUCCESS_10

border-success-50 / SUCCESS_50

border-success / SUCCESS

Border Radius

Classes for setting the border radius of an element.
Java class: LumoUtility.BorderRadius

Preview CSS Class Name / Java Constant

rounded-none / NONE

rounded-s / SMALL

rounded-m / MEDIUM

rounded-l / LARGE

Box Shadow

Classes for applying a box shadow.
Java class: LumoUtility.BoxShadow

Preview CSS Class Name / Java Constant

shadow-xs / XSMALL

shadow-s / SMALL

shadow-m / MEDIUM

shadow-l / LARGE

shadow-xl / XLARGE

Sizing

Classes for setting the height and width of an element.

Height

Java class: LumoUtility.Height

Preview CSS Class Name / Java Constant

N/A

h-0 / NONE

XS

h-xs / XSMALL

S

h-s / SMALL

M

h-m / MEDIUM

L

h-l / LARGE

XL

h-xl / XLARGE

Auto

h-auto / AUTO

Full

h-full / FULL
Sets the height of an element to 100% of its parent’s height.

Screen(scroll to see total height)

h-screen / SCREEN
Sets the height of an element to 100% of the viewport height.

Max Height

Java class: LumoUtility.MaxHeight

Preview CSS Class Name / Java Constant

N/A

max-h-full / FULL
Sets the maximum height of an element to 100% of its parent’s height.

N/A

max-h-screen / SCREEN
Sets the maximum height of an element to 100% of the viewport height.

Min Height

Java class: LumoUtility.MinHeight

Preview CSS Class Name / Java Constant

N/A

min-h-0 / NONE
Sets the minimum height of an element to 0.

Full

min-h-full / FULL
Sets the minimum height of an element to 100% of its parent’s height.

Screen(scroll to see total height)

min-h-screen / SCREEN
Sets the minimum height of an element to 100% of the viewport height.

Width

Java class: LumoUtility.Width

Preview CSS Class Name / Java Constant

XS

w-xs / XSMALL

S

w-s / SMALL

M

w-m / MEDIUM

L

w-l / LARGE

XL

w-xl / XLARGE

Auto

w-auto / AUTO

Full

w-full / FULL
Sets the width of an element to 100% of its parent’s width.

Max Width

Java class: LumoUtility.MaxWidth

Preview CSS Class Name / Java Constant

N/A

max-w-full / FULL
Sets the maximum width of an element to 100% of its parent’s width.

N/A

max-w-screen-sm / SCREEN_SMALL
Sets the maximum width of an element to 640px.

N/A

max-w-screen-md / SCREEN_MEDIUM
Sets the maximum width of an element to 768px.

N/A

max-w-screen-lg / SCREEN_LARGE
Sets the maximum width of an element to 1024px.

N/A

max-w-screen-xl / SCREEN_XLARGE
Sets the maximum width of an element to 1280px.

N/A

max-w-screen-2xl / SCREEN_XXLARGE
Sets the maximum width of an element to 1536px.

Min Width

Java class: LumoUtility.MinWidth

Preview CSS Class Name / Java Constant

N/A

min-w-0 / NONE
Sets the minimum width of an element to 0.

Full

min-w-full / FULL
Sets the minimum width of an element to 100% of its parent’s width.

Icon Size

Java class: LumoUtility.IconSize

Preview CSS Class Name / Java Constant

icon-s / SMALL

icon-m / MEDIUM

icon-l / LARGE

Spacing

Classes for applying margin and padding to individual elements, as well as spacing between elements in a layout.

Margin

Classes for setting the margin of an element.

Uniform

Java class: LumoUtility.Margin

Preview CSS Class Name / Java Constant

Auto

m-auto / AUTO

0

m-0 / NONE

XS

m-xs / XSMALL

S

m-s / SMALL

M

m-m / MEDIUM

L

m-l / LARGE

XL

m-xl / XLARGE
Bottom

Java class: LumoUtility.Margin.Bottom

Preview CSS Class Name / Java Constant

Auto

mb-auto / AUTO

0

mb-0 / NONE

XS

mb-xs / XSMALL

S

mb-s / SMALL

M

mb-m / MEDIUM

L

mb-l / LARGE

XL

mb-xl / XLARGE
Left

Java class: LumoUtility.Margin.Left

Preview CSS Class Name / Java Constant

Auto

ml-auto / AUTO

0

ml-0 / NONE

XS

ml-xs / XSMALL

S

ml-s / SMALL

M

ml-m / MEDIUM

L

ml-l / LARGE

XL

ml-xl / XLARGE

Java class: LumoUtility.Margin.Right

Preview CSS Class Name / Java Constant

Auto

mr-auto / AUTO

0

mr-0 / NONE

XS

mr-xs / XSMALL

S

mr-s / SMALL

M

mr-m / MEDIUM

L

mr-l / LARGE

XL

mr-xl / XLARGE
Top

Java class: LumoUtility.Margin.Top

Preview CSS Class Name / Java Constant

Auto

mt-auto / AUTO

0

mt-0 / NONE

XS

mt-xs / XSMALL

S

mt-s / SMALL

M

mt-m / MEDIUM

L

mt-l / LARGE

XL

mt-xl / XLARGE
Inline End

Java class: LumoUtility.Margin.End

Preview CSS Class Name / Java Constant

Auto

me-auto / AUTO

0

me-0 / NONE

XS

me-xs / XSMALL

S

me-s / SMALL

M

me-m / MEDIUM

L

me-l / LARGE

XL

me-xl / XLARGE
Inline Start

Java class: LumoUtility.Margin.Start

Preview CSS Class Name / Java Constant

Auto

ms-auto / AUTO

0

ms-0 / NONE

XS

ms-xs / XSMALL

S

ms-s / SMALL

M

ms-m / MEDIUM

L

ms-l / LARGE

XL

ms-xl / XLARGE
Horizontal

Java class: LumoUtility.Margin.Horizontal

Preview CSS Class Name / Java Constant

Auto

mx-auto / AUTO

0

mx-0 / NONE

XS

mx-xs / XSMALL

S

mx-s / SMALL

M

mx-m / MEDIUM

L

mx-l / LARGE

XL

mx-xl / XLARGE
Vertical

Java class: LumoUtility.Margin.Vertical

Preview CSS Class Name / Java Constant

Auto

my-auto / AUTO

0

my-0 / NONE

XS

my-xs / XSMALL

S

my-s / SMALL

M

my-m / MEDIUM

L

my-l / LARGE

XL

my-xl / XLARGE

Padding

Classes for setting the padding of an element.

Uniform

Java class: LumoUtility.Padding

Preview CSS Class Name / Java Constant

0

p-0 / NONE

XS

p-xs / XSMALL

S

p-s / SMALL

M

p-m / MEDIUM

L

p-l / LARGE

XL

p-xl / XLARGE
Bottom

Java class: LumoUtility.Padding.Bottom

Preview CSS Class Name / Java Constant

0

pb-0 / NONE

XS

pb-xs / XSMALL

S

pb-s / SMALL

M

pb-m / MEDIUM

L

pb-l / LARGE

XL

pb-xl / XLARGE
Left

Java class: LumoUtility.Padding.Left

Preview CSS Class Name / Java Constant

0

pl-0 / NONE

XS

pl-xs / XSMALL

S

pl-s / SMALL

M

pl-m / MEDIUM

L

pl-l / LARGE

XL

pl-xl / XLARGE
Right

Java class: LumoUtility.Padding.Right

Preview CSS Class Name / Java Constant

0

pr-0 / NONE

XS

pr-xs / XSMALL

S

pr-s / SMALL

M

pr-m / MEDIUM

L

pr-l / LARGE

XL

pr-xl / XLARGE
Top

Java class: LumoUtility.Padding.Top

Preview CSS Class Name / Java Constant

0

pt-0 / NONE

XS

pt-xs / XSMALL

S

pt-s / SMALL

M

pt-m / MEDIUM

L

pt-l / LARGE

XL

pt-xl / XLARGE
Inline End

Java class: LumoUtility.Padding.End

Preview CSS Class Name / Java Constant

0

pe-0 / NONE

XS

pe-xs / XSMALL

S

pe-s / SMALL

M

pe-m / MEDIUM

L

pe-l / LARGE

XL

pe-xl / XLARGE
Inline Start

Java class: LumoUtility.Padding.Start

Preview CSS Class Name / Java Constant

0

ps-0 / NONE

XS

ps-xs / XSMALL

S

ps-s / SMALL

M

ps-m / MEDIUM

L

ps-l / LARGE

XL

ps-xl / XLARGE
Horizontal

Java class: LumoUtility.Padding.Horizontal

Preview CSS Class Name / Java Constant

0

px-0 / NONE

XS

px-xs / XSMALL

S

px-s / SMALL

M

px-m / MEDIUM

L

px-l / LARGE

XL

px-xl / XLARGE
Vertical

Java class: LumoUtility.Padding.Vertical

Preview CSS Class Name / Java Constant

0

py-0 / NONE

XS

py-xs / XSMALL

S

py-s / SMALL

M

py-m / MEDIUM

L

py-l / LARGE

XL

py-xl / XLARGE

Typography

Classes for styling text.

Font Size

Classes for setting the font size of an element.
Java class: LumoUtility.FontSize

Preview CSS Class Name / Java Constant

Lorem ipsum

text-2xs / XXSMALL

Lorem ipsum

text-xs / XSMALL

Lorem ipsum

text-s / SMALL

Lorem ipsum

text-m / MEDIUM

Lorem ipsum

text-l / LARGE

Lorem ipsum

text-xl / XLARGE

Lorem ipsum

text-2xl / XXLARGE

Lorem ipsum

text-3xl / XXXLARGE

Font Weight

Classes for setting the font weight of an element.
Java class: LumoUtility.FontWeight

Preview CSS Class Name / Java Constant

Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua.

font-thin / THIN

Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua.

font-extralight / EXTRALIGHT

Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua.

font-light / LIGHT

Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua.

font-normal / NORMAL

Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua.

font-medium / MEDIUM

Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua.

font-semibold / SEMIBOLD

Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua.

font-bold / BOLD

Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua.

font-extrabold / EXTRABOLD

Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua.

font-black / BLACK

Line Height

Classes for setting the line height of an element.
Java class: LumoUtility.LineHeight

Preview CSS Class Name / Java Constant

Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua.

leading-none / NONE

Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua.

leading-xs / XSMALL

Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua.

leading-s / SMALL

Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua.

leading-m / MEDIUM

List Style Type

Class for remove the default look of a list.
Java class: LumoUtility.ListStyleType

Preview CSS Class Name / Java Constant

  • Item 1
  • Item 2
  • Item 3

list-none / NONE

Text Alignment

Classes for setting an element’s text alignment.
Java class: LumoUtility.TextAlignment

Preview CSS Class Name / Java Constant

Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua.

text-left / LEFT

Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua.

text-center / CENTER

Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua.

text-right / RIGHT

Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua.

text-justify / JUSTIFY

Text Color

Classes for setting the text color of an element.
Java class: LumoUtility.TextColor

Preview CSS Class Name / Java Constant

Header

text-header / HEADER

Body

text-body / BODY

Secondary

text-secondary / SECONDARY

Tertiary

text-tertiary / TERTIARY

Disabled

text-disabled / DISABLED

Primary

text-primary / PRIMARY

Primary contrast

text-primary-contrast / PRIMARY_CONTRAST

Error

text-error / ERROR

Error contrast

text-error-contrast / ERROR_CONTRAST

Error

text-warning / WARNING

Error contrast

text-warning-contrast / WARNING_CONTRAST

Success

text-success / SUCCESS

Success contrast

text-success-contrast / SUCCESS_CONTRAST

Text Overflow

Classes for setting text overflow.
Java class: LumoUtility.TextOverflow

Preview CSS Class Name / Java Constant

Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua.

overflow-clip / CLIP

Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua.

overflow-ellipsis / ELLIPSIS

Text Transform

Classes for transforming text.
Java class: LumoUtility.TextTransform

Preview CSS Class Name / Java Constant

Lorem ipsum dolor sit amet

capitalize / CAPITALIZE

Lorem ipsum dolor sit amet

lowercase / LOWERCASE

Lorem ipsum dolor sit amet

uppercase / UPPERCASE

Whitespace

Classes for transforming text.
Java class: LumoUtility.Whitespace

Preview CSS Class Name / Java Constant

Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco laboris nisi ut aliquip ex ea commodo consequat.

whitespace-normal / NORMAL

Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco laboris nisi ut aliquip ex ea commodo consequat.

whitespace-nowrap / NOWRAP

Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco laboris nisi ut aliquip ex ea commodo consequat.

whitespace-pre / PRE

Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco laboris nisi ut aliquip ex ea commodo consequat.

whitespace-pre-line / PRE_LINE

Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco laboris nisi ut aliquip ex ea commodo consequat.

whitespace-pre-wrap / PRE_WRAP

Flexbox & Grid

Classes for flexbox and grid layouts.

Note
Remember to set display
The following classes require setting either the flex or grid CSS class on the element to work. See Display classes.

Align Content

Classes for distributing space around and between items along a flexbox’s cross axis or a grid’s block axis. Applies to flexbox and grid layouts.
Java class: LumoUtility.AlignContent

Preview CSS Class Name / Java Constant

1234

content-center / CENTER

1234

content-end / END

1234

content-start / START

1234

content-around / AROUND

1234

content-between / BETWEEN

1234

content-evenly / EVENLY

1234

content-stretch / STRETCH

Align Items

Classes for aligning items along a flexbox’s cross axis or a grid’s block axis. Applies to flexbox and grid layouts.
Java class: LumoUtility.AlignItems

Preview CSS Class Name / Java Constant

123

items-baseline / BASELINE

123

items-center / CENTER

123

items-end / END

123

items-start / START

123

items-stretch / STRETCH

Align Self

Classes for overriding individual items align-item property. Applies to flexbox and grid items.
Java class: LumoUtility.AlignSelf

Preview CSS Class Name / Java Constant

123

self-auto / AUTO

123

self-baseline / BASELINE

123

self-center / CENTER

123

self-end / END

123

self-start / START

123

self-stretch / STRETCH

Justify Content

Classes for aligning items along a flexbox’s main axis or a grid’s inline axis. Applies to flexbox and grid layouts.
Java class: LumoUtility.JustifyContent

Preview CSS Class Name / Java Constant

12

justify-center / CENTER

12

justify-end / END

12

justify-start / START

12

justify-around / AROUND

12

justify-between / BETWEEN

12

justify-evenly / EVENLY

Flex

Classes for setting how items grow and shrink in a flexbox layout. Applies to flexbox items.
Java class: LumoUtility.Flex

Preview CSS Class Name / Java Constant

1999

flex-auto / AUTO

1999

flex-none / NONE

Flex Direction

Classes for setting the flex direction of a flexbox layout.
Java class: LumoUtility.FlexDirection

Preview CSS Class Name / Java Constant

123

flex-col / COLUMN

123

flex-col-reverse / COLUMN_REVERSE

123

flex-row / ROW

123

flex-row-reverse / ROW_REVERSE

Flex Grow

Classes for setting how items grow in a flexbox layout. Applies to flexbox items.
Java class: LumoUtility.Flex

Preview CSS Class Name / Java Constant

1

flex-grow-0 / GROW_NONE

1

flex-grow / GROW

Flex Shrink

Classes for setting how items shrink in a flexbox layout. Applies to flexbox items.
Java class: LumoUtility.Flex

Preview CSS Class Name / Java Constant

56px

flex-shrink-0 / SHRINK_NONE

56px

flex-shrink / SHRINK

Flex Wrap

Classes for setting how items wrap in a flexbox layout. Applies to flexbox layouts.
Java class: LumoUtility.FlexWrap

Preview CSS Class Name / Java Constant

1234

flex-nowrap / NOWRAP

1234

flex-wrap / WRAP

1234

flex-wrap-reverse / WRAP_REVERSE

Gap

Classes for defining the space between items in a flexbox or grid layout. Applies to flexbox and grid layouts.

Uniform

Java class: LumoUtility.Gap

Preview CSS Class Name / Java Constant

1234

gap-xs / XSMALL

1234

gap-s / SMALL

1234

gap-m / MEDIUM

1234

gap-l / LARGE

1234

gap-xl / XLARGE
Column

Classes for defining the horizontal space between items in a flexbox or grid layout. Applies to flexbox and grid layouts.
Java class: LumoUtility.Gap.Column

Preview CSS Class Name / Java Constant

12

gap-x-xs / XSMALL

12

gap-x-s / SMALL

12

gap-x-m / MEDIUM

12

gap-x-l / LARGE

12

gap-x-xl / XLARGE
Row

Classes for defining the vertical space between items in a flexbox or grid layout. Applies to flexbox and grid layouts.
Java class: LumoUtility.Gap.Row

Preview CSS Class Name / Java Constant

12

gap-y-xs / XSMALL

12

gap-y-s / SMALL

12

gap-y-m / MEDIUM

12

gap-y-l / LARGE

12

gap-y-xl / XLARGE

Grid Columns

Classes for setting the number of columns in a grid layout.
Java class: LumoUtility.Grid.Column

Preview CSS Class Name / Java Constant

1234

grid-cols-1 / COLUMNS_1

1234

grid-cols-2 / COLUMNS_2

1234

grid-cols-3 / COLUMNS_3

1234

grid-cols-4 / COLUMNS_4

12345678

grid-cols-5 / COLUMNS_5

12345678

grid-cols-6 / COLUMNS_6

12345678

grid-cols-7 / COLUMNS_7

12345678

grid-cols-8 / COLUMNS_8

123456789101112

grid-cols-9 / COLUMNS_9

123456789101112

grid-cols-10 / COLUMNS_10

123456789101112

grid-cols-11 / COLUMNS_11

123456789101112

grid-cols-12 / COLUMNS_12

Grid Rows

Classes for setting the number of rows in a grid layout.
Java class: LumoUtility.Grid.Row

Preview CSS Class Name / Java Constant

12345678

grid-rows-1 / ROWS_1

12345678

grid-rows-2 / ROWS_2

12345678

grid-rows-3 / ROWS_3

12345678

grid-rows-4 / ROWS_4

12345678

grid-rows-5 / ROWS_5

12345678

grid-rows-6 / ROWS_6

Spanning Columns

Classes for setting the column span of an item in a grid layout. Java class: LumoUtility.Grid.Column

Preview CSS Class Name / Java Constant

123456789101112

col-span-1 / COLUMN_SPAN_1

1234567891011121314151617181920212223

col-span-2 / COLUMN_SPAN_2

12345678910111213141516171819202122

col-span-3 / COLUMN_SPAN_3

123456789101112131415161718192021

col-span-4 / COLUMN_SPAN_4

1234567891011121314151617181920

col-span-5 / COLUMN_SPAN_5

12345678910111213141516171819

col-span-6 / COLUMN_SPAN_6

123456789101112131415161718

col-span-7 / COLUMN_SPAN_7

1234567891011121314151617

col-span-8 / COLUMN_SPAN_8

12345678910111213141516

col-span-9 / COLUMN_SPAN_9

123456789101112131415

col-span-10 / COLUMN_SPAN_10

1234567891011121314

col-span-11 / COLUMN_SPAN_11

12345678910111213

col-span-12 / COLUMN_SPAN_12

Spanning Rows

Classes for setting the row span of an item in a grid layout.
Java class: LumoUtility.Grid.Row

Preview CSS Class Name / Java Constant

123456

row-span-1 / ROW_SPAN_1

1234567891011

row-span-2 / ROW_SPAN_2

12345678910

row-span-3 / ROW_SPAN_3

123456789

row-span-4 / ROW_SPAN_4

12345678

row-span-5 / ROW_SPAN_5

1234567

row-span-6 / ROW_SPAN_6

Layout

Classes for general layout purposes.

Box Sizing

Classes for setting the box sizing property of an element. Box sizing determines whether an element’s border and padding is considered a part of its size.
Java class: LumoUtility.BoxSizing

Preview CSS Class Name / Java Constant

Size: 44px

box-border / BORDER

Size: 44px

box-content / CONTENT

Display

Classes for setting the display property of an element. Determines whether the element is a block or inline element and how its items are laid out.
Java class: LumoUtility.Display

Preview CSS Class Name / Java Constant

123

block / BLOCK

123

inline / INLINE

123

inline-block / INLINE_BLOCK

123

flex / FLEX

123

inline-flex / INLINE_FLEX

hidden / HIDDEN

123456789

grid / GRID

123456789

inline-grid / INLINE_GRID

Overflow

Classes for setting the overflow behavior of an element.
Java class: LumoUtility.Overflow

Preview CSS Class Name / Java Constant

123Scrolls

overflow-auto / AUTO

123No scroll

overflow-hidden / HIDDEN

123Scrolls

overflow-scroll / SCROLL

Position

Classes for setting the position of an element.
Java class: LumoUtility.Position

Preview CSS Class Name / Java Constant

RelativeAbsolute

absolute / ABSOLUTE

FixedLorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco laboris nisi ut aliquip ex ea commodo consequat.

fixed / FIXED

N/A

static / STATIC

Sticky 1Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco laboris nisi ut aliquip ex ea commodo consequat.Sticky 2Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco laboris nisi ut aliquip ex ea commodo consequat.

sticky / STICKY

N/A

relative / RELATIVE

Accessibility

Accessibility related classes
Java class: LumoUtility.Accessibility

Preview CSS Class Name / Java Constant

Screen reader only content

sr-only / SCREEN_READER_ONLY
Hides content visually while remaining available to screen readers

111103A7-DD4A-430A-9D73-60668B6A849A
